product description

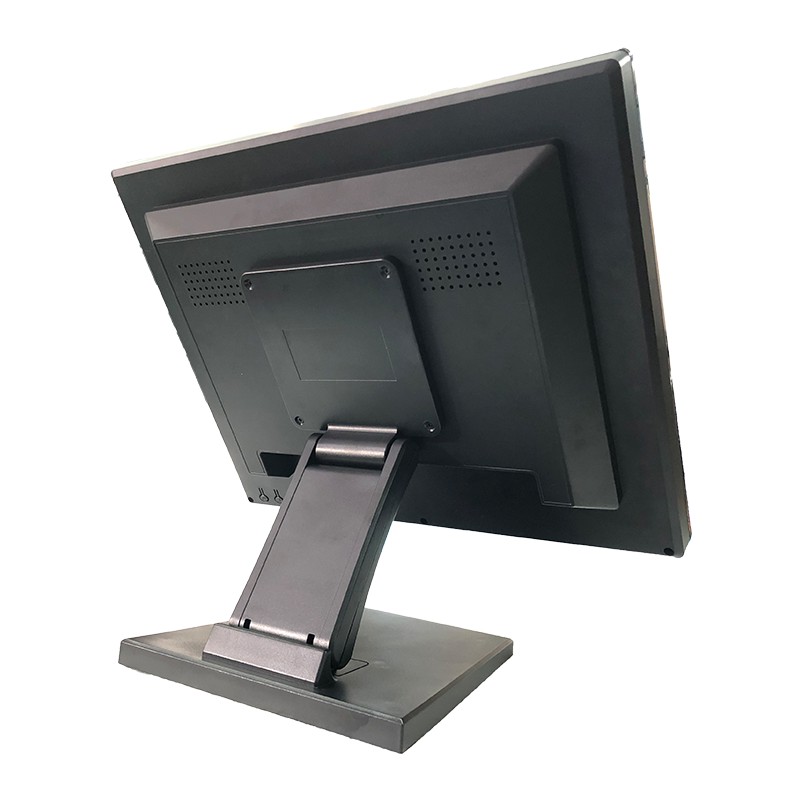

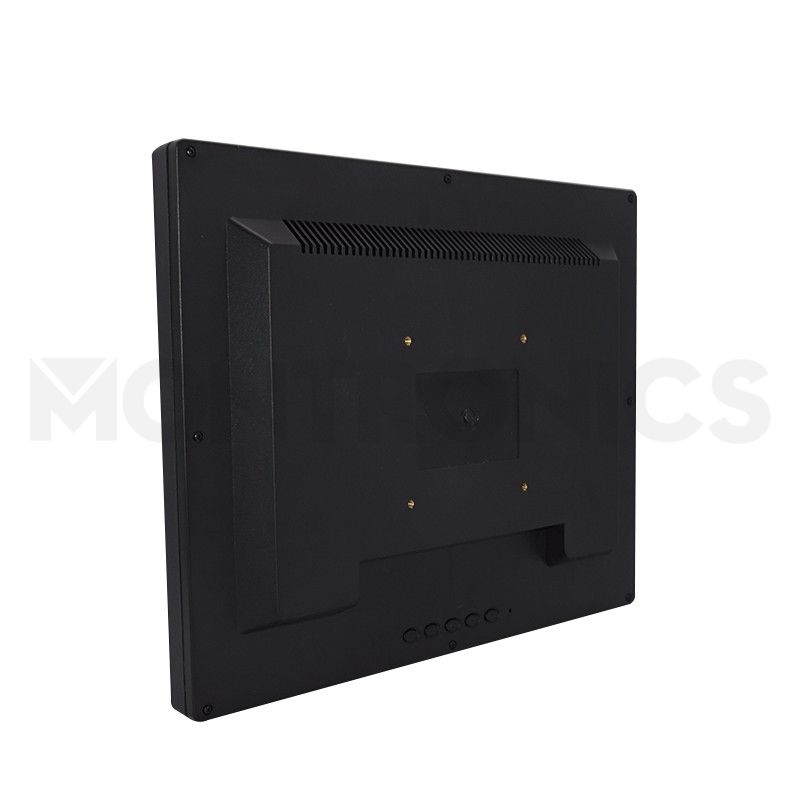

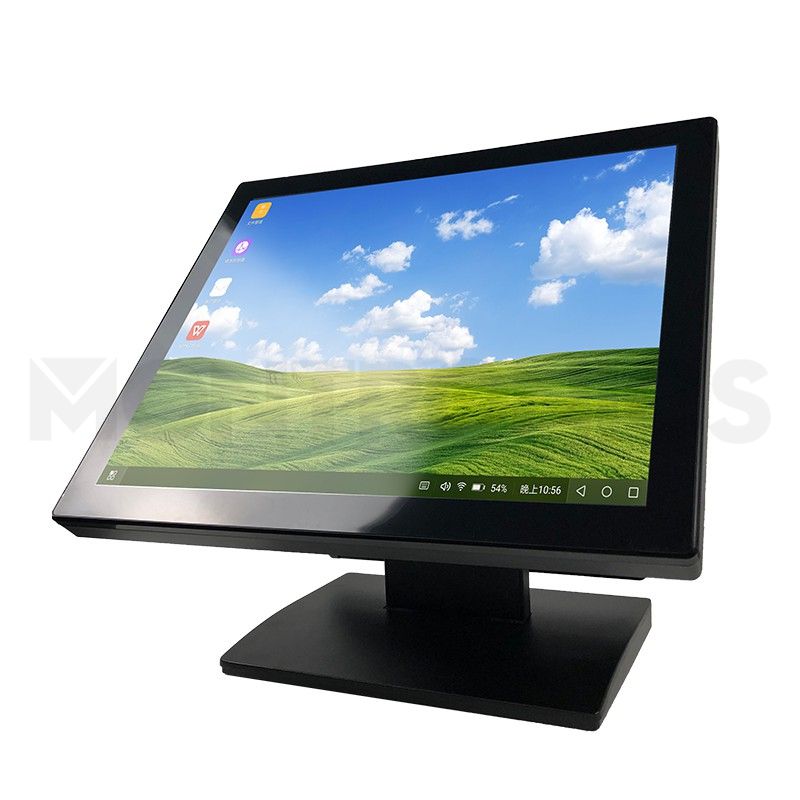

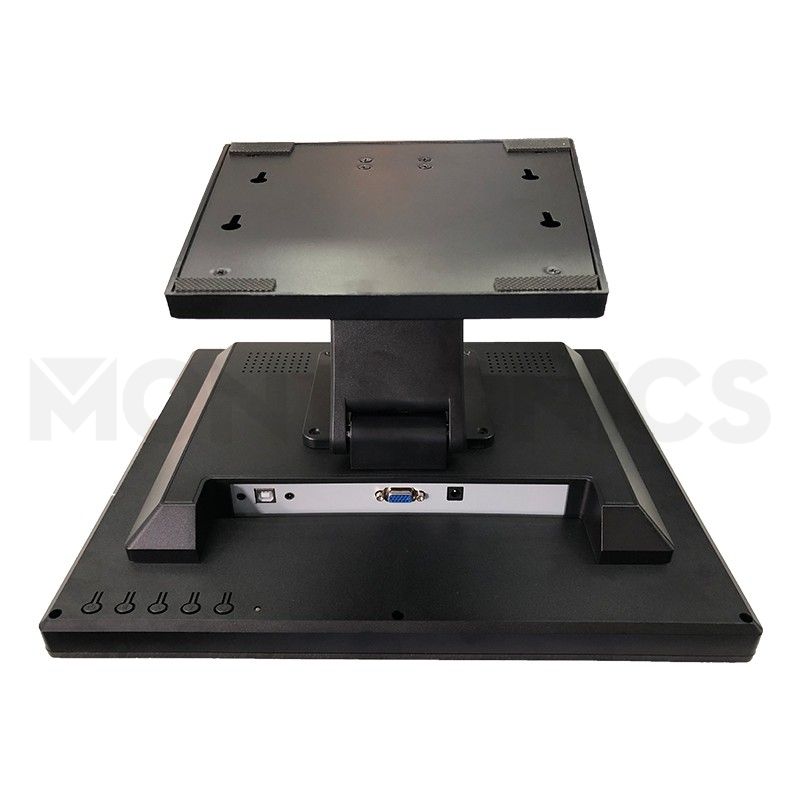

17 inch Flat Touch Screen Monitor (M1703)
| Display ratio | 4:3 |
| Standard Resolution | 1280*1024 |
| Number of Colors | 16.7M |
| Brightness | 300cd/m2 |
| Response time | 5ms |
| View angle | Horizontal:80° |
| Vertical:70° | |
| Contrase ratio | 800/1 |
| Video input format | (analog) RGB |
| Interface | VGA for video signal |
| USB for Touch signal | |
| Frequency | HSF:30-80KHZ VSF:56-75HZ |
| Power supply | External Power Supply:100 to 240V (DC 12V) |
| Operation Environment | |
| Operate relative humidity:20% to 80%;storage relative humidity:10% to 90% | |
| Touch model | 5 Wire Resistive touch |
| Duration | 50000hours |
| touch validity | >1,000,000 |
| Mount (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
| 2) provide stable metal base to support the monitor | |
| OSD control | AUTO,+,POWER,-,MENU |
| brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset | |
| Touch interface | USB or RS232 optional |
| Touch response time | 5ms |
| Spare parts | VGA cable, USB cable, Driver, Touch Pen, Brochure, protective film. |
