product description
Model | M238 | ||

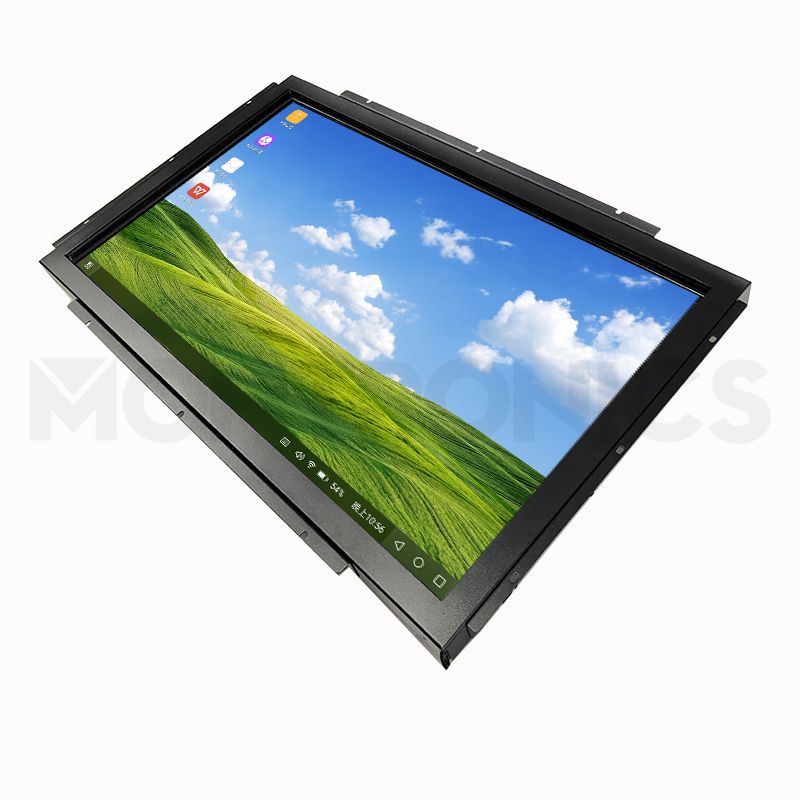

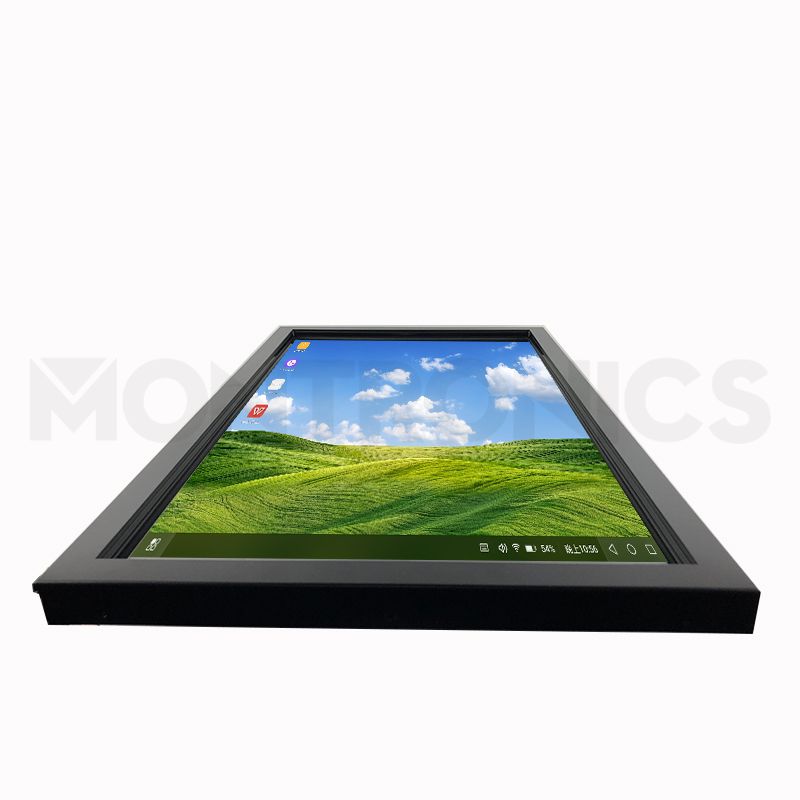

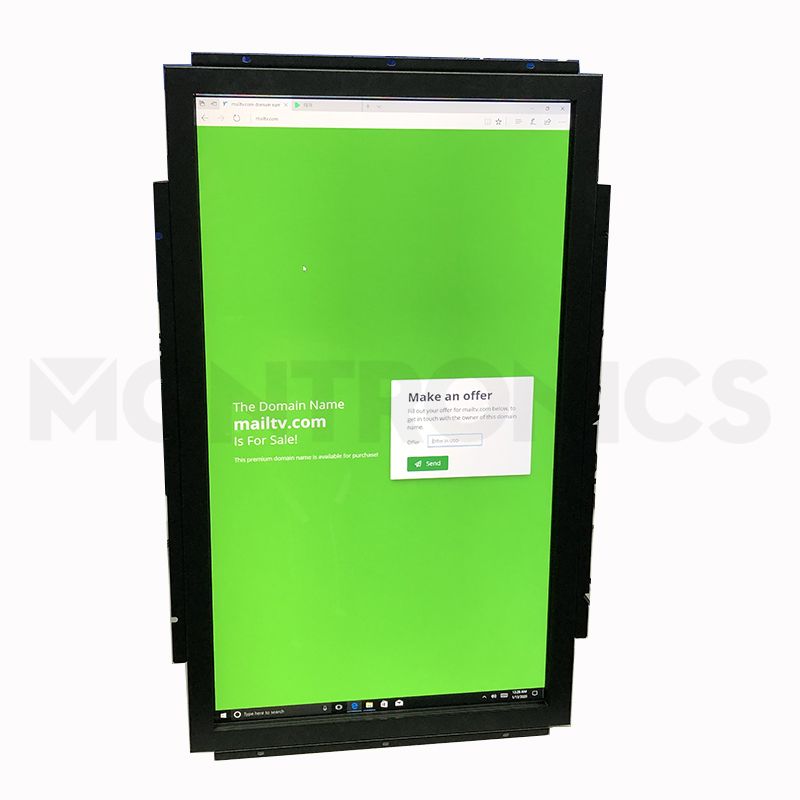

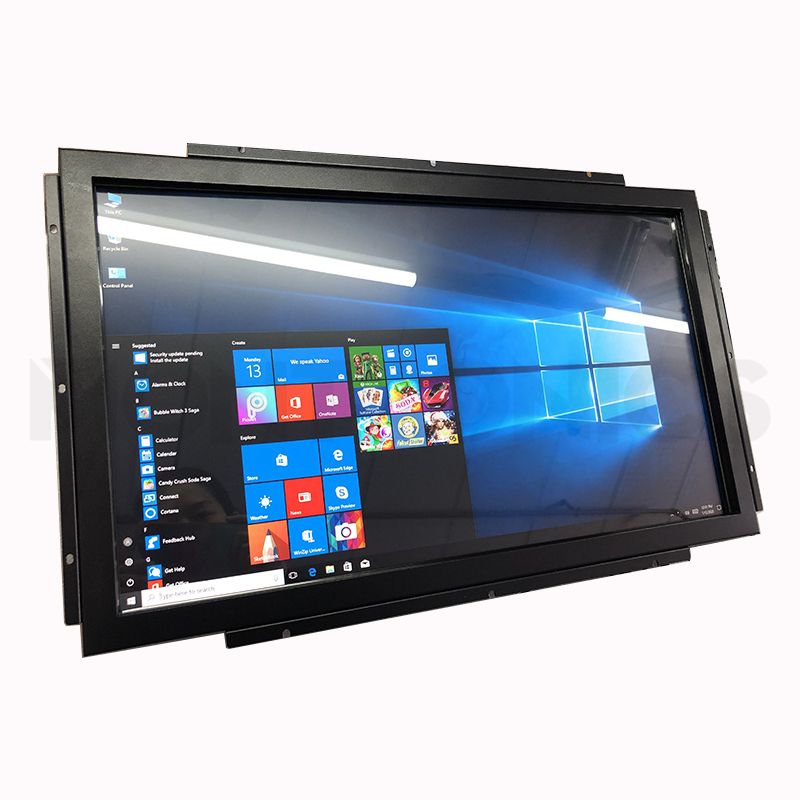

Size | 23.8 Inch Open Frame IR Touch AIO | ||
Panel | BOE | ||
Screen Ratio | 16:09 | ||
Resolution | 1920*1080 | ||
Contract Ratro | 800:01:00 | ||
Response time | 5ms | ||
Brightness | 250cd/m2 | ||
Pixel | 0.0826*0.247mm | ||
Display area | 529x298mm (H×V) | ||
Viewing Angle | 178°/178° IPS Full viewing angle | ||
Life | more than 50 thousand hours | ||
Touch | IR | Infrared single touch | |
PC specification | Mainboard | J1900-quad core | |
CPU | J1900, 1.8Ghz | ||
SSD | 128GB | ||
RAM | 4GB | ||
Signal | Video system | PAL/NTSC/SECAM | |
Computer | Computer line synchronous range:30~80KHZ,:50~60HZ | ||
Support: 1920*1080 | |||
Consumption | Voltage | AC110-240V | |
Consumption | ≤48W | ||
standby | <2W | ||

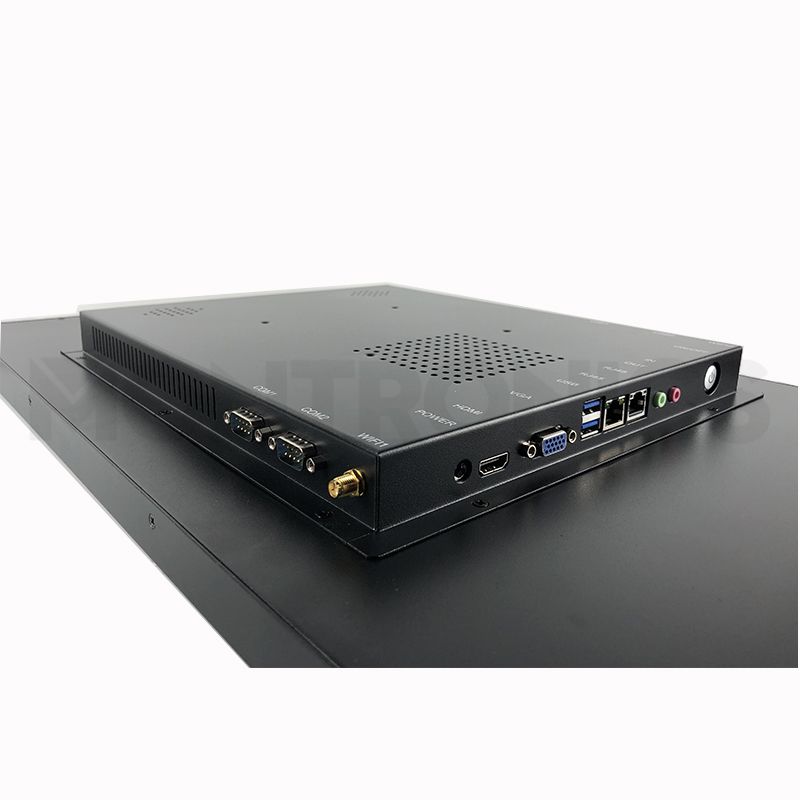

Signal output | VGA | ×1 | |
USB 2.0 | x2 | ||
MIC | ×1 | ||
HDMI | x1 | ||
RJ45 | ×2 | ||
RS232 | x2 | ||
USB | x4 | ||
WiFi | x2 | ||
DC Power | ×1 | ||
Speaker | 2x3W | ||
Environment | Work Temperature:0- 50 ℃ | storage temperature:-20- 60 ℃ | |
work humidity:10%~85% | |||
Frame material | Metal Frame housing | ||
Design weight | Machine weight the machine without the packing weight 8kg | ||
BIOS | Power on by Alarm | ||
OTHERS | MENU | MENU,POWER,SELECT,CH+,CH-,UP,DOWN |
