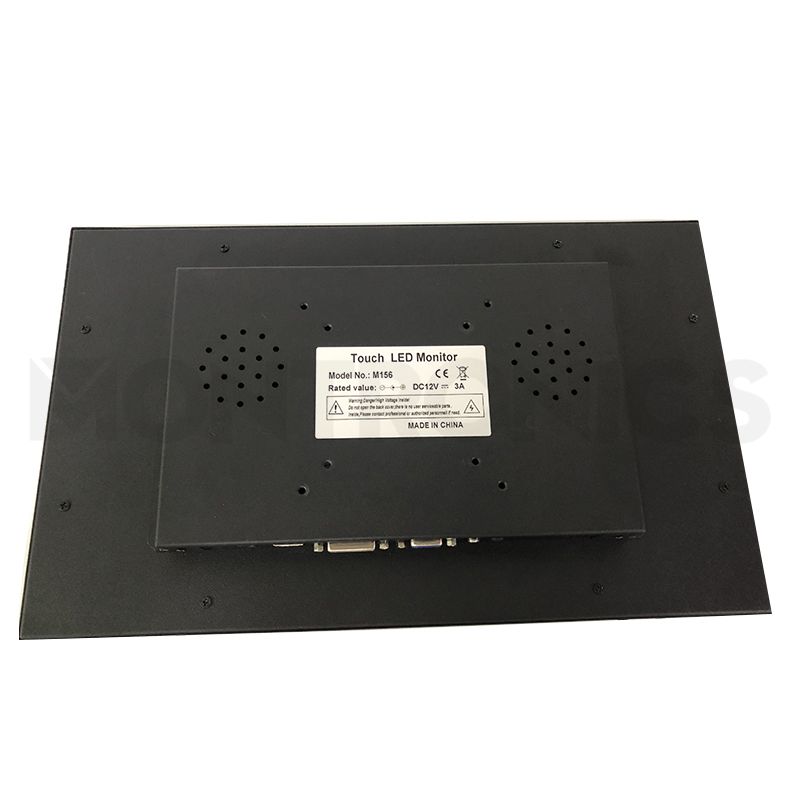

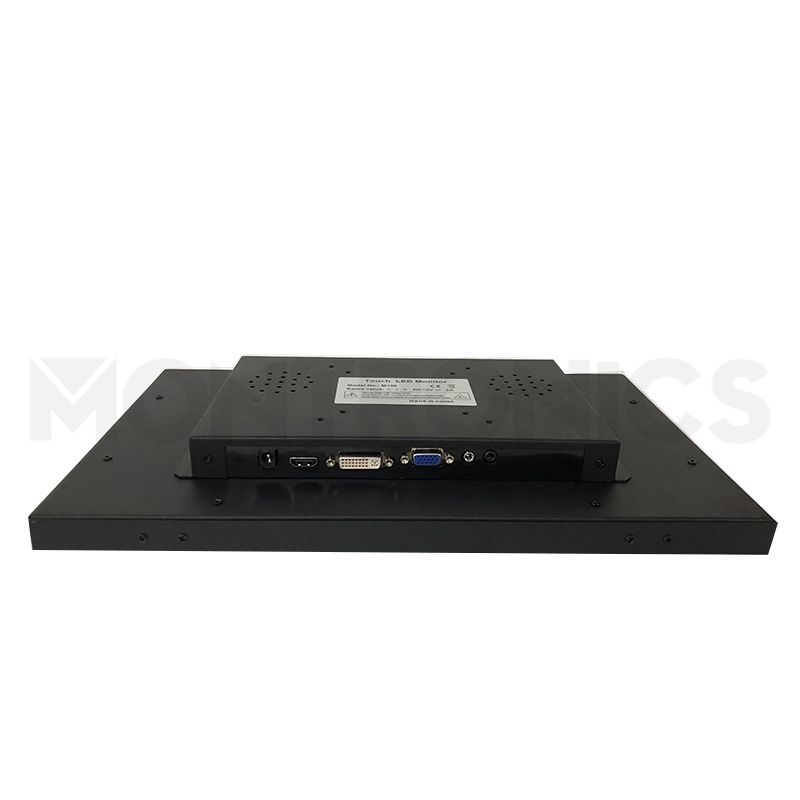

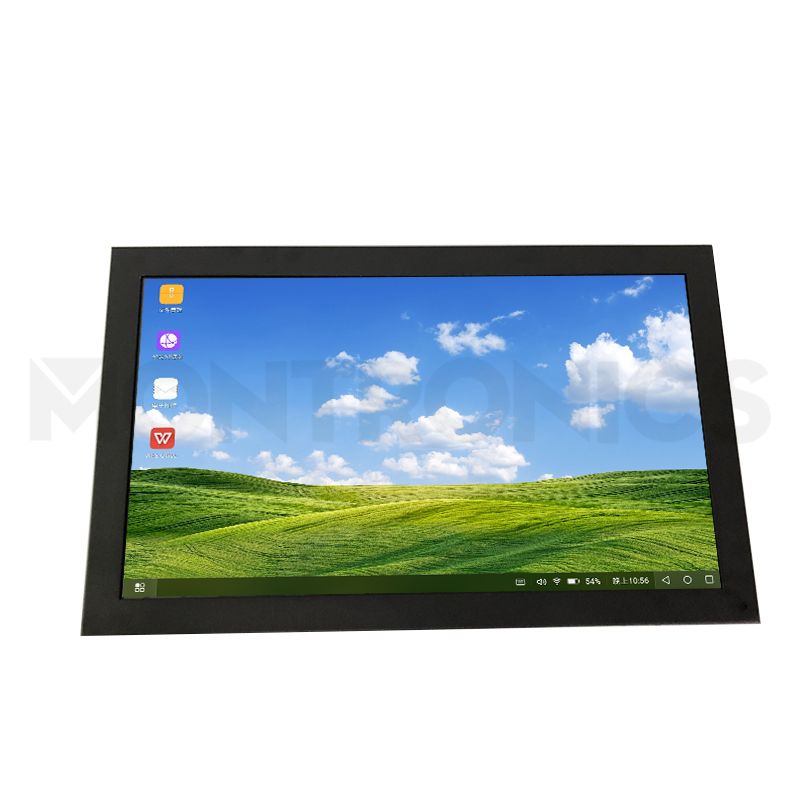

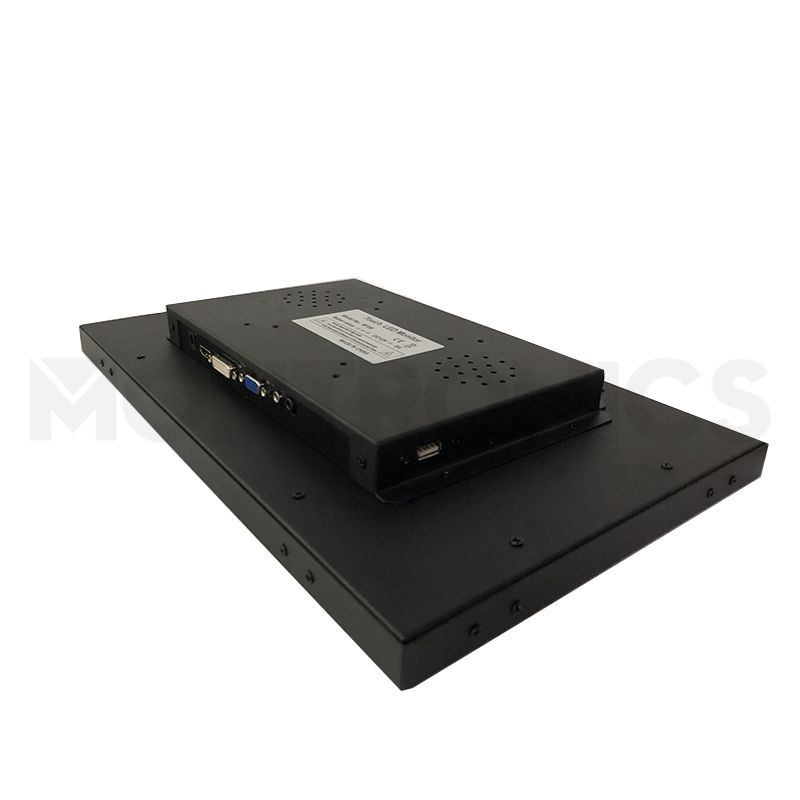

15.6 inch Open Frame Capacitive Touch Screen Monitor

product description
                                                                        Model: M156
Panel size15.6 inch Wide Capacitive Touch Screen Monitor
panel quality gradeA+ grade
Display area304*228mm
Standard Resolution1920*1080
Number of Colors16.7M
Brightness350cd/m2 (max: 450nits)
Response time5ms
View angleHorizontal:178°
Vertical:178°
Contrase ratio500:01:00
Video input format(analog) RGB
ConnectorVGA+DVI+HDMI(for video signal)                                                                                                                                                                                                                 USB (for touch signal)
Frequency30~80KHz/60~75Hz
Power supplyExternal Power Supply:100 to 240V  (DC 12V)
Operation EnvironmentWorkable Temperature:-10 to 60°C   Storage temperature:-20 to 70°C
Operate relative humidity:20% to 80%;storage relative humidity:10% to 90%
Touch model10 Points Capacitive Touch
Duration50000hours
touch validity>1,000,000
Net weight3.5 Kgs/pcs
Gross weight4 Kgs/pcs
Power consumptionMax 30W
Setup (optional)1) provide wall brackets for wall-mounting, VESA 75mm&100mm
2) provide stable mental base to support the monitor
OSD  controlAUTO,+,POWER,-,MENU
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset
CertificateCE, ROHS, FCC
Monitor size(not include base)375*285*55mm
Each unit box size420*370*155mm
Package size4pcs in a carton,carton size:650*450*430mm
Operation systemWindows,Linux
