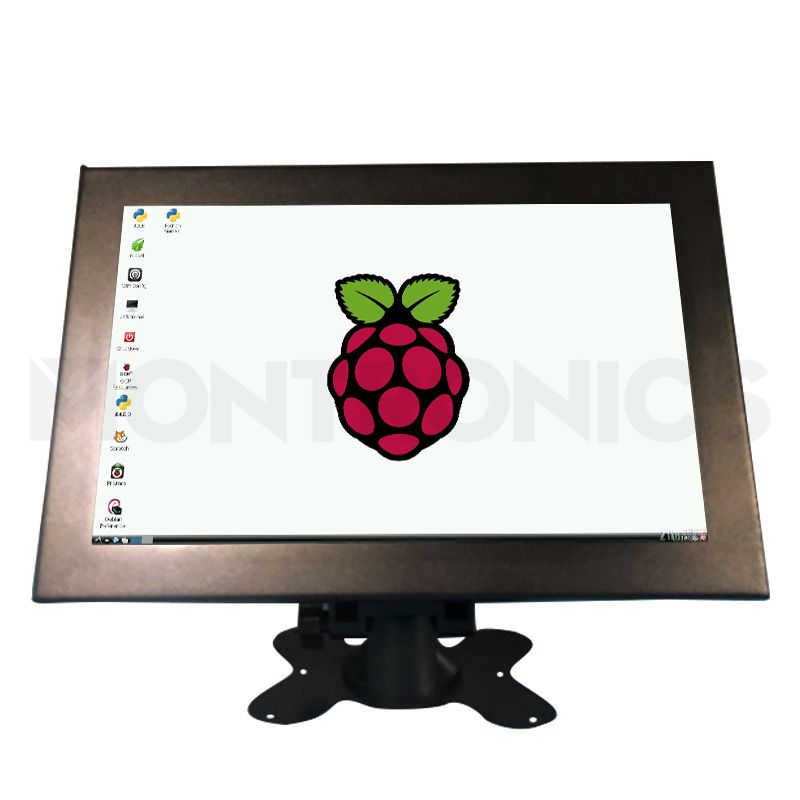

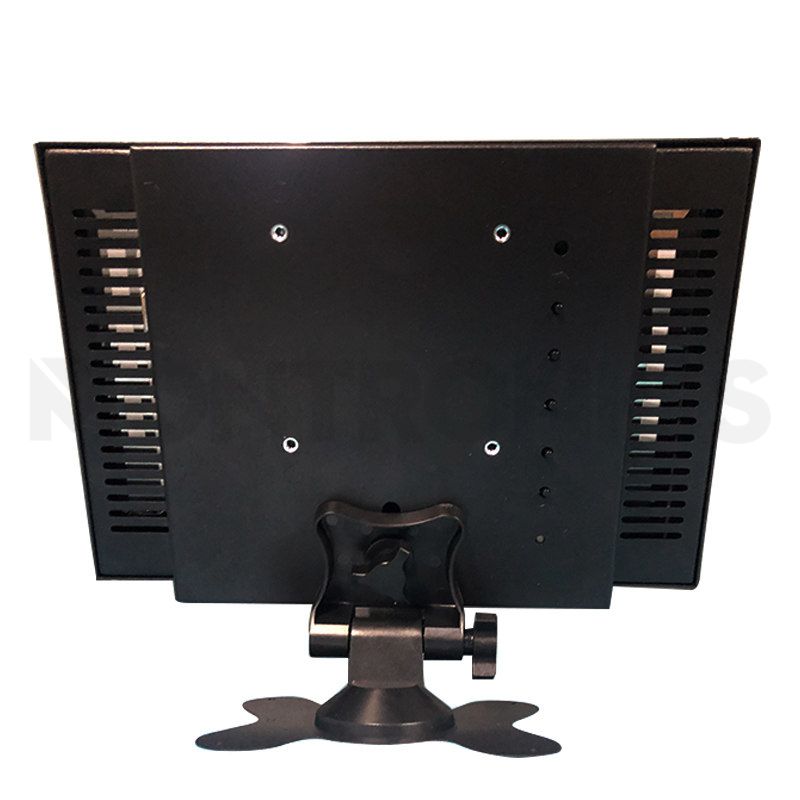

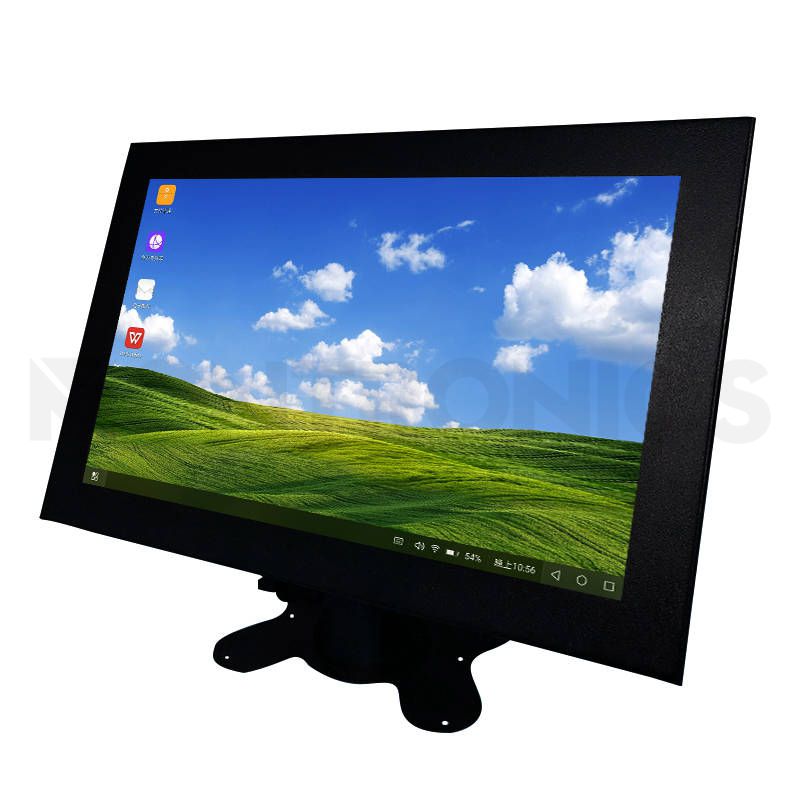

10.1 inch Capacitive Touch Monitor Support Raspberry Pi

product description
ModelM1001-1
Panel size10.1 inch
Standard Resolution1280x800
screen ratio16:10
Number of Colors16.7M
Brightness350cd/m2
Response time5ms
View angleHorizontal:178°
Vertical:178°
Contrase ratio500:01:00
Video input format(analog) RGB

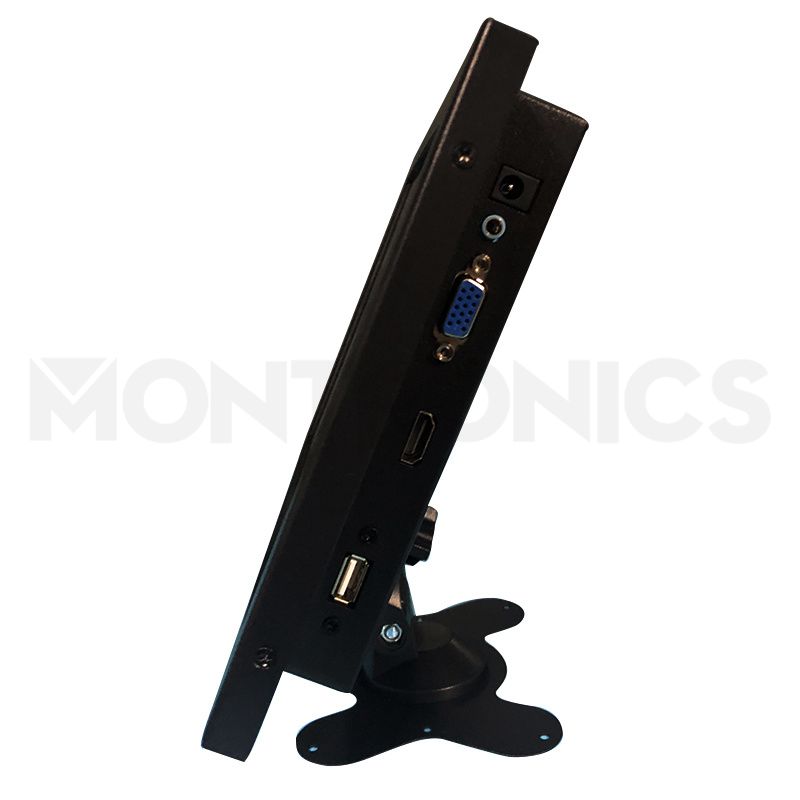

ConnectorVGA +HDMI for video signal
USB for touch signal
Frequency50-60Hz
Power supplyExternal Power Supply:100 to 240V (DC 12V)
Operation EnvironmentWorkable Temperature:-10 to 60°C   Storage temperature:-20 to 70°C
Operate relative humidity:20% to 80%;storage relative humidity:10% to 90%
Touch model10 points capacitive multi-touch
Duration50000hours
touch validityMaterial>1,000,000 Metal Frame
