8 inch Face Recognition Temperature Measure All In One PC

product description

M8

Hardware

Features

Host

OS

Android 7.0


CPU

Rockchip RK3288K   Quad Core Cortex-A171.8GHzindurtrial grade


RAM

2GB DDR3


Memory

8GB EMMC

Camera

Sensor

1/1.8 inch SONY IMX385 (Superstarlight level scan 2.1M CMOS image sensor line by line)


Wide Dynamic

120dB


Cam

6mm(optional)

Panel

Size

8 inch


Resolution

800*1280 Vertical screen


Screen degree

0~30 degree, rotating shaft can be adjusted


Touch

Support

Smart features

Description

Recognition time

≤0.6S(20 thousand face stock)

Recognition way

ID cardMifare/NFC cardFace

Face verification accuracy

≥99.99%

Passing rate

99%

False Accept rate

0.01%

Facial recognition distance

0.3M2.5M

Face capacity

No ceiling, 20000 is recommended

Algorithm fit for race

Universal species (yellow/balck/white/latino.,etc)

Bio-Assay

Support, monocular visible vivo discrimination

Mask recognition

Support, no mask reminding

Temperature measuring performance

ranges

10~50indoor without wind


accuracy

±0.3


resolution

0.1


distance

0.5m~0.75m


Field angle

90°(H) * 90°(V)


Respond time

200mS

Batch entry

Support

Management platform

SupportB/S structure

Interface

Description

Swithcing value

1 channel input


1 channel output

Wiggins

1 channel wiggin inputsupport wiggin 26 and 34


1 channel wiggin output, support wiggin 26 and 34

Internet

1 *RJ45 10M / 100M

USB

USB OTG

Reader

IC card

optional


ID card

optional


Resident ID card

optionalcan support both ID and IC card

Common feature

Description

Power

DC12V

Size(WxHx T)

Vertical type

130*292*34mm


Wall mounted

130*292*34mm

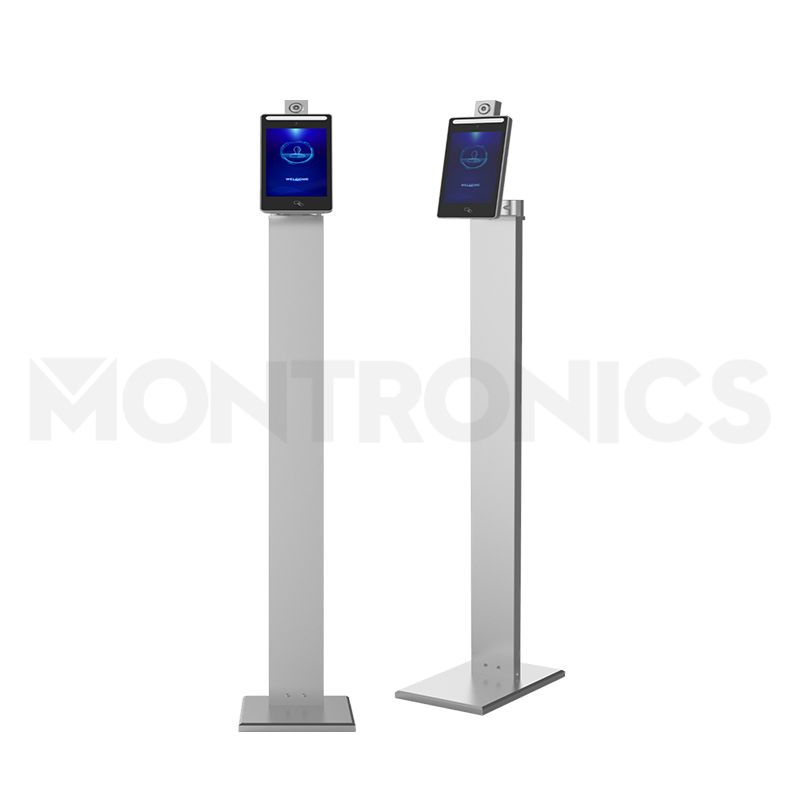

Standalone

200*1505.3*300mm

Woking environment

-30 - +75≤90%RH

IP level

IP66

Installment

Standalone/wall mounted/vertical type
