product description
| Model: M1001 | |

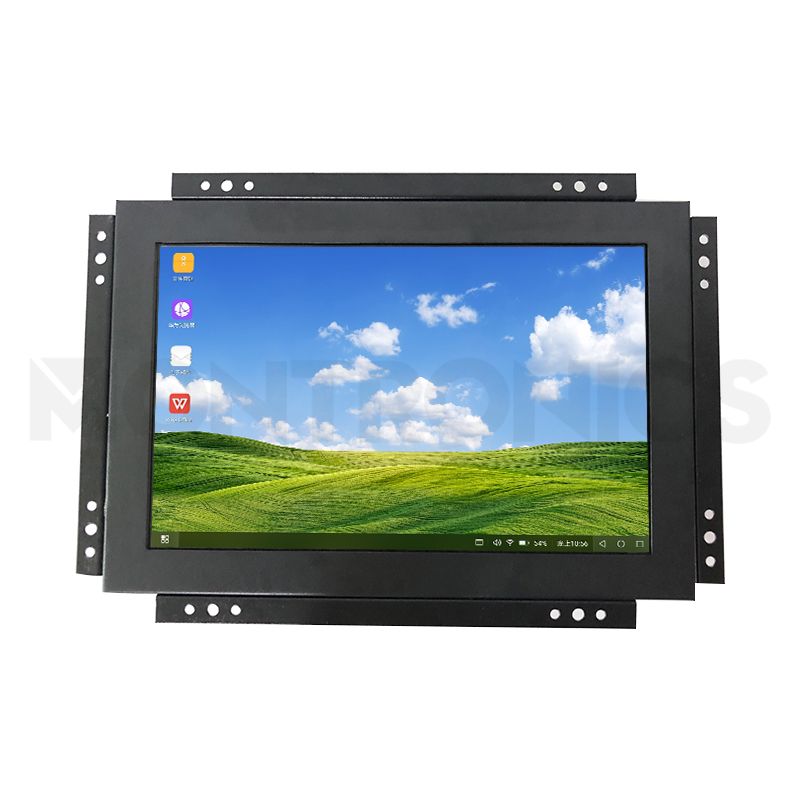

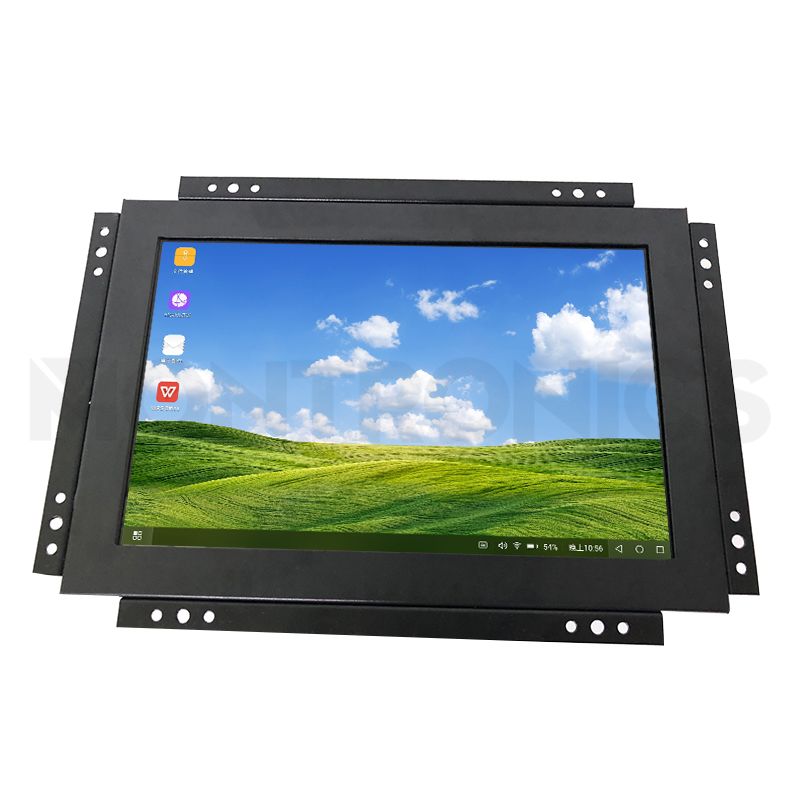

| Panel size | 10.1 inch Flat Touch Screen Monitor |
| Standard Resolution | 1280x800 (IPS) |
| Screen ratio | 16:09 |
| Number of Colors | 16.2M |
| Brightness | 350cd/ m2 |
| Response time | 2ms |
| View angle | Horizontal:178°, Vertical:178° |
| Dot Pitch | 0.1025x0.3075mm |
| Contrase ratio | 800:1 (Typ) |
| Video input format | (analog) RGB |

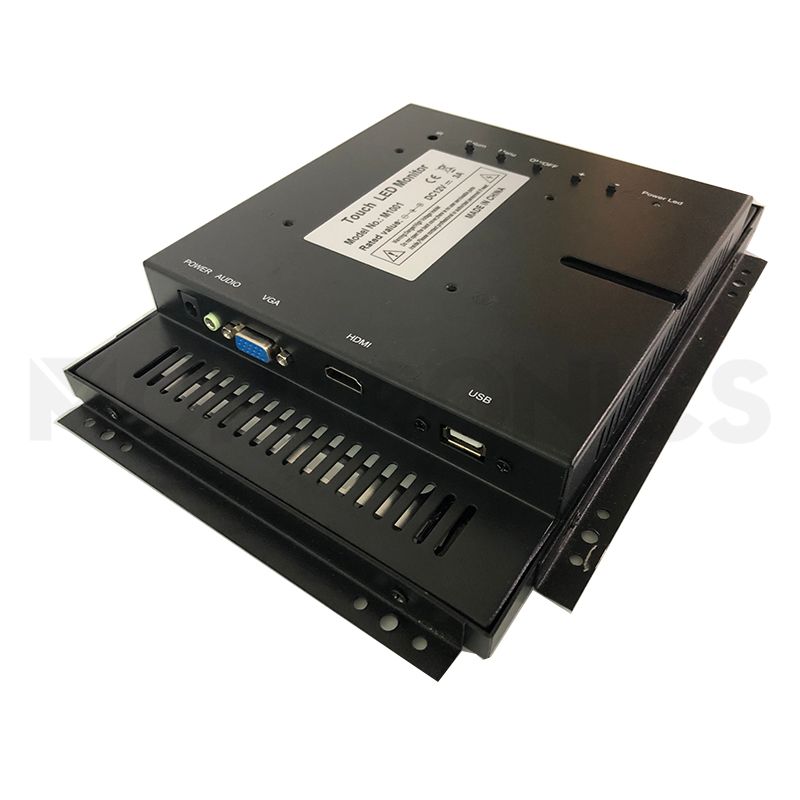

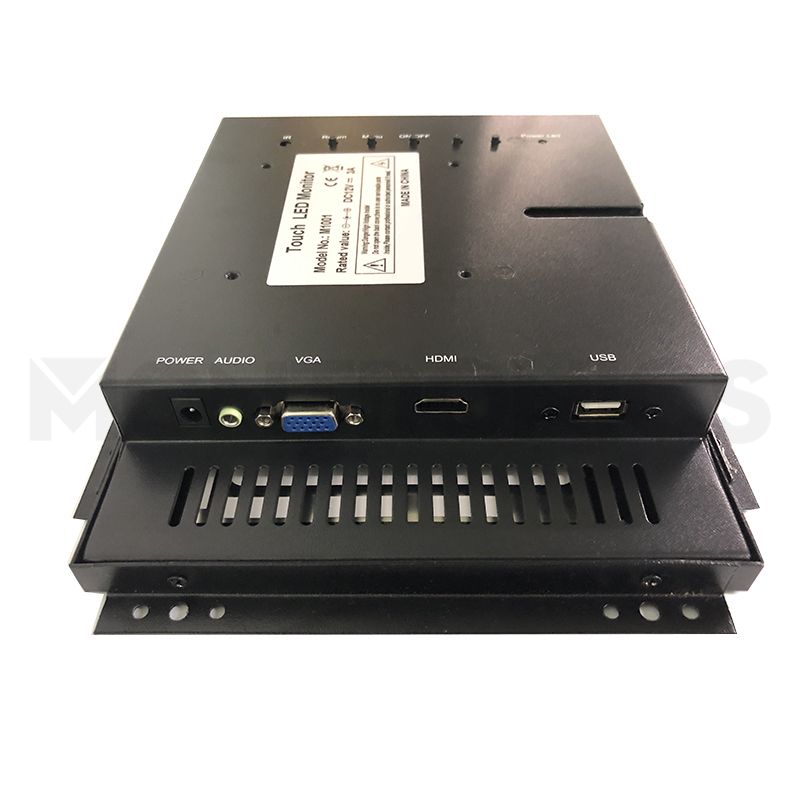

| Connector | VGA+HDMI for video signal |
| USB for touch signal | |
| Frequency | 30~80KHz/50~60Hz |
| Power supply | External Power Supply:100 to 240V (DC 12V) |
| Operation Environment | Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°C |
| Operate relative humidity:20% to 80%;storage relative humidity:10% to 90% | |
| Touch model | 10 Points Capacitive Multi-Touch |
| Duration | 50000hours |
| touch validity | >1,000,000 |
| Net weight | 2 Kgs/pcs,include stand |
| Gross weight | 2.5 Kgs/pcs,include stand |
| Power consumption | Max 25W |
| Setup (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
| 2) provide stable mental base to support the monitor | |
| OSD control | AUTO,+,POWER,-,MENU |
| brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset | |
| Certificate | CE, ROHS |
| Monitor size(not include base) | 300*245*44mm |
